Ulva-6 Reef LED DIY Kit

Ulva-6 is the world’s first commercial-grade, fully open-source WiFi smart LED DIY kit for reef aquariums. It uses the Buce LED controller as its brain, along with our user-friendly yet powerful mobile app.

Your own smart WiFi reef LED, now fully hackable

Ulva-6 is built on our OSHWA-certified open-source LED controller Buce, designed specifically for nano reef aquariums.

  • Reef-Optimized Spectrum: High-power LEDs for coral growth.
  • Modern Design, Low-Cost: Ulva-6’s hardware adopts the latest and most suitable cutting-edge design, delivering high performance, high integration, and affordable cost.
  • DIY & Education-Friendly Simple assembly and code for beginners and IoT learning.
  • Fully Open-Source: 100% open hardware, MCU firmware, and Flutter App for easy customization.

Powerful LED

Ulva-6 is an open-source product that makes no compromises on functionality or performance. Beyond features like high-precision constant-current drives, 4096-levels 19kHz PWM dimming, and fully programmable lighting settings, Ulva-6 also offers capabilities typically found in high-end commercial LEDs:

  • Astronomically calculated fully automatic sunrise/sunset simulation
  • Coral acclimation mode
  • Smooth light transitions & temporary lighting mode
  • Multiple dimming algorithms (linear, logarithmic, exponential, gamma-corrected, CIE-1931).
  • PID based adaptive thermal management system
  • And much more.

From the Code to the Glow

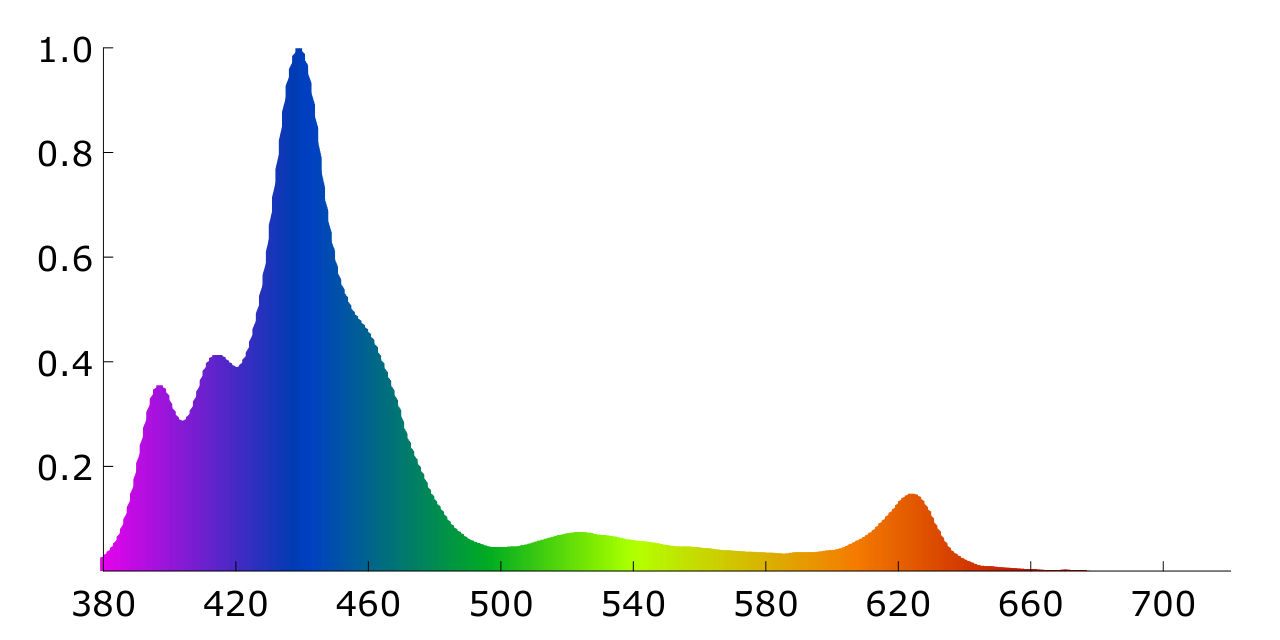

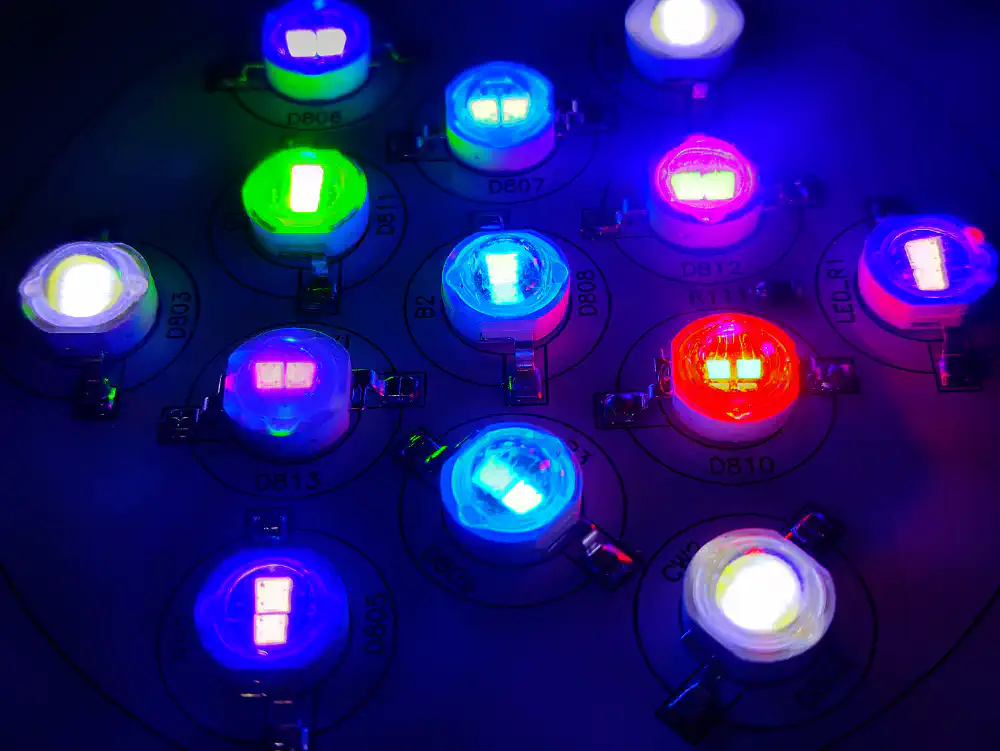

The high-power dual-chip packaged LED beads used in Ulva-6, delivering up to 60W, contain the full spectrum required for coral growth and viewing.

With 6 independent dimming channels, Ulva-6 can create unlimited color combinations based on your preferences.

  • Cool White × 3
  • Royal Blue × 3
  • Blue × 3
  • Red × 1
  • Green × 1
  • Violet × 1
  • Ultra-violet × 1

“Smart” means it comes with an app

Ulva-6 is controlled using our user-friendly and powerful Borneo-IoT mobile app.

Learn more

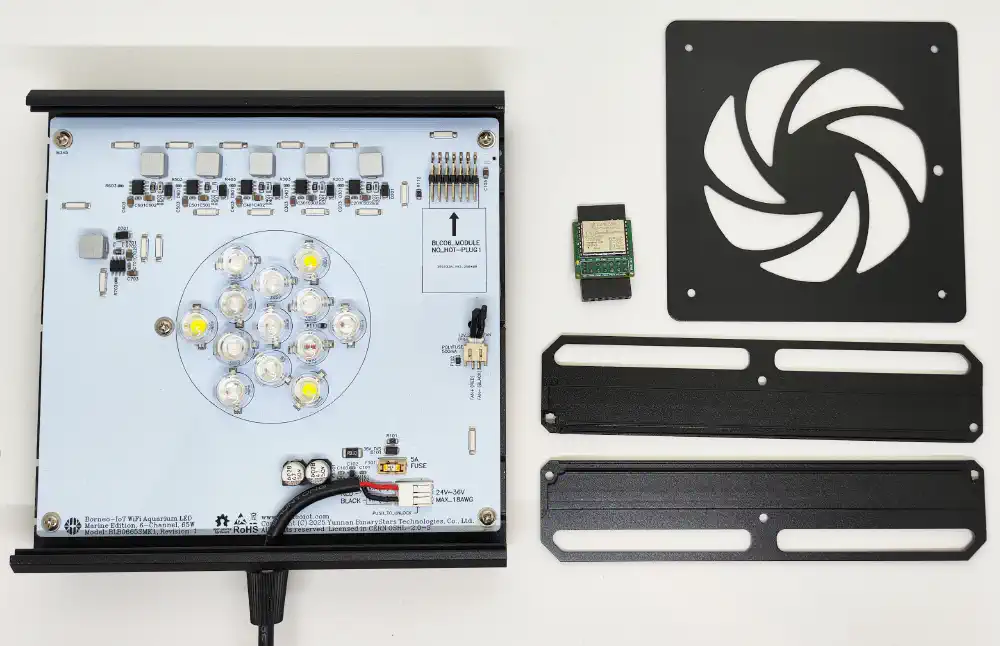

Pro Design, Solid Build

  • Designed with safety and stability as priorities, ensuring stable operation for many years:
    • Built-in temperature and current detection circuits provide overcurrent and overtemperature protection.
    • Equipped with a replaceable fuse, surge protection circuit, PTC self-resetting fuse, and other hardware safeguards.

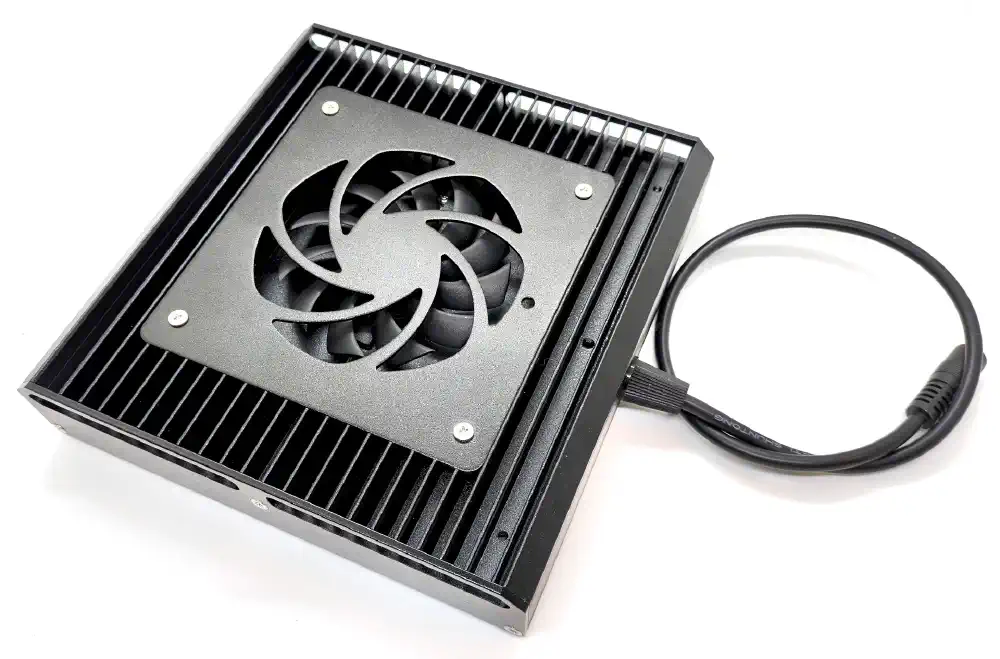

  • Fully metallic construction with no 3D-printed parts, assembly can be completed without electronic skills.

Open Architecture

  • Uses open IoT protocols like mDNS, CoAP over UDP for communication

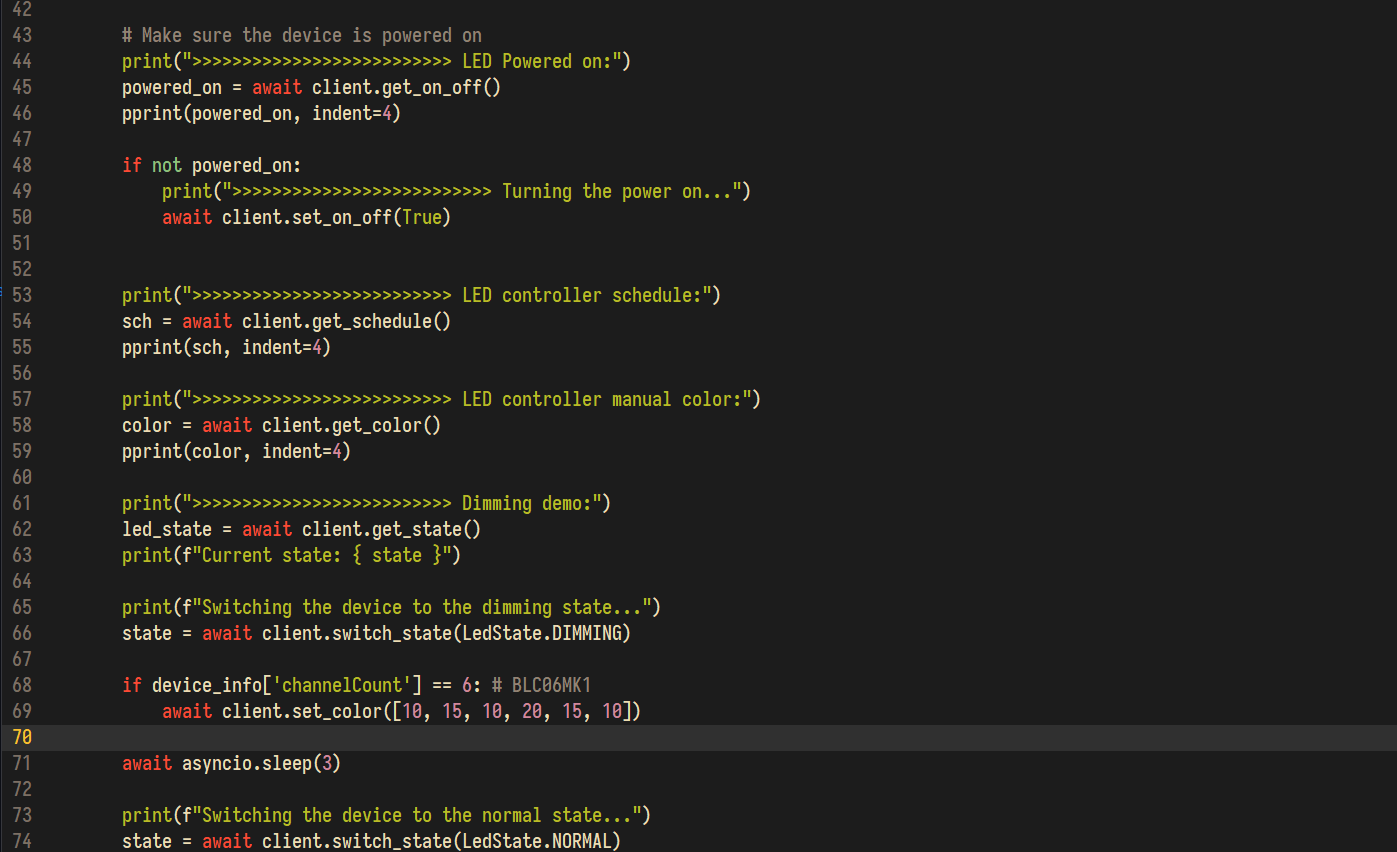

  • All features accessible via open-source Python client library
  • Easy integration with Home Assistant or Node-RED

Back on Crowd Supply

Our modular LED controller Buce is officially LIVE on Crowd Supply. The crowdfunding campaign is now open.

Get early bird perks and join the journey.

Subscribe on Crowd Supply
